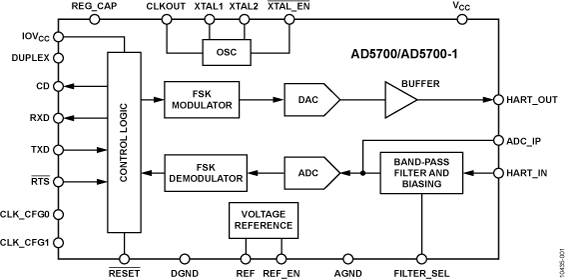

Low power HART FSK modem provides a single-chip half-duplex physical-layer interface for field transmitters, HART multiplexers, and industrial analog I/O modules. The device integrates filtering, signal detection, modulation, demodulation, signal generation, an internal reference, and a buffered HART output. The AD5700-1 version includes a 0.5 percent precision internal oscillator and supports 1200 Hz and 2200 Hz continuous-phase sinusoidal shift frequencies. Operation is specified from 1.71 V to 5.5 V over a −40 °C to +125 °C temperature range in a 24-lead 4 mm × 4 mm LFCSP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5700-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Function | HART FSK half-duplex modem |
| HART compliance | HART physical layer compliant |
| Interface | UART |
| Mark frequency | 1200Hz |
| Space frequency | 2200Hz |
| Internal oscillator accuracy | ±0.5% |
| Supply voltage range | 1.71 to 5.5V |
| Digital interface supply voltage range | 1.71 to 5.5V |
| Receive-mode supply current | 115 maxµA |
| Transmit-mode supply current | 140 maxµA |
| Internal reference voltage | 1.5 typV |
| External reference input voltage | 2.5 typV |
| ESD rating, human body model | 8kV |
| Operating temperature range | -40 to +125°C |
| Carrier detect on time | 6 maxbit times |
| Carrier detect off time | 6 maxbit times |
| Internal oscillator power-up time | 25 typµs |
| Package | 24-lead LFCSP_WQ, 4 mm x 4 mm |
