Analog Devices
ADA4302-4ACPZ-RL7
RF/Microwave Splitter/Combiner, 54 MHz - 865 MHz RF/MICROWAVE SPLITTER, 4 X 4 MM, LEAD FREE, MO-220VGGD-1, LFCSP-20
Frequency865MHz
Quick Jump:
Technical Specifications
Analog Devices ADA4302-4ACPZ-RL7 technical specifications.
General
Frequency
865MHz
Input Type
SINGLE-ENDED
Lead Free
Contains Lead
Length
4mm
Nominal Supply Current
215mA
Number of Inputs
1
Number of Outputs
4
Operating Supply Voltage
5V
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Thickness
850um
Width
3.75mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4302-4ACPZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADA4302-4ACPZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

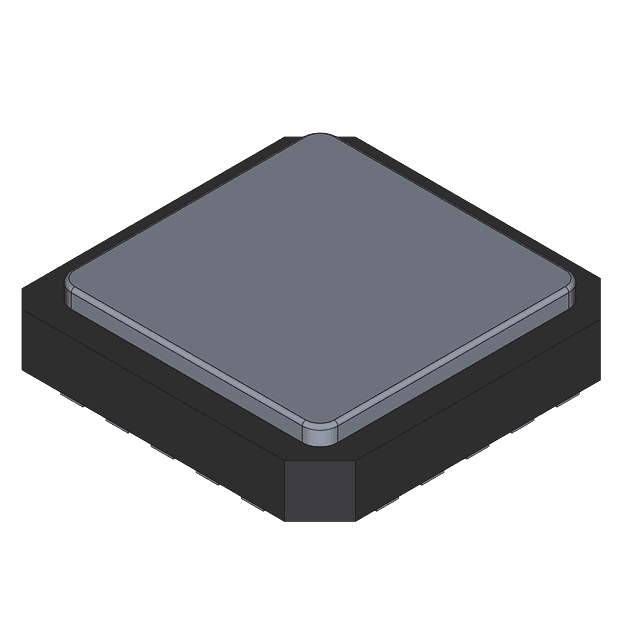

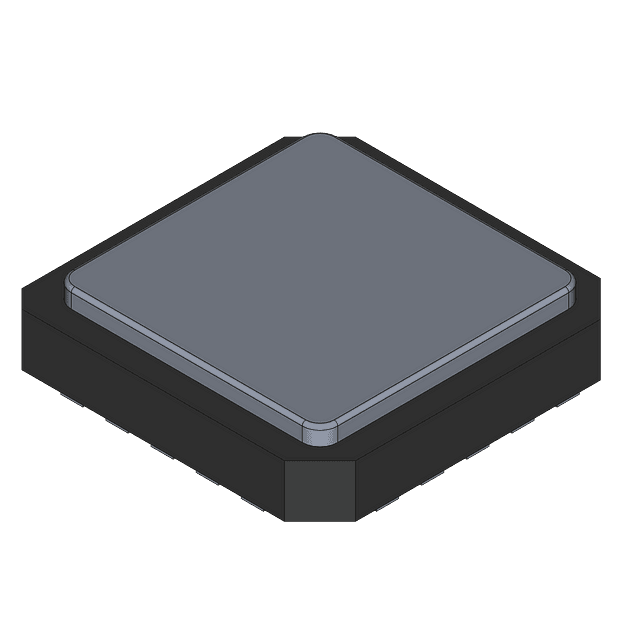

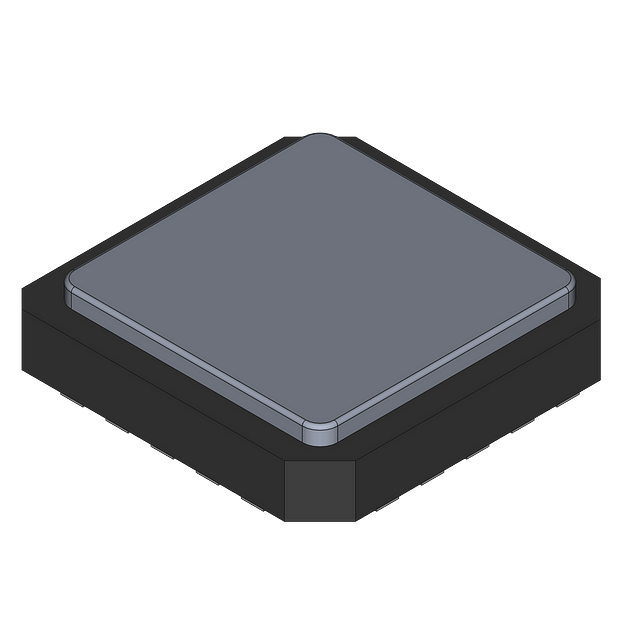

Product Images
