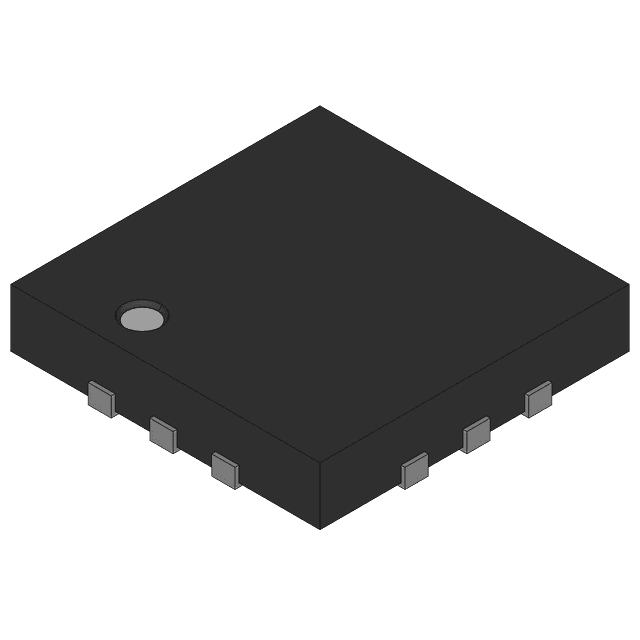

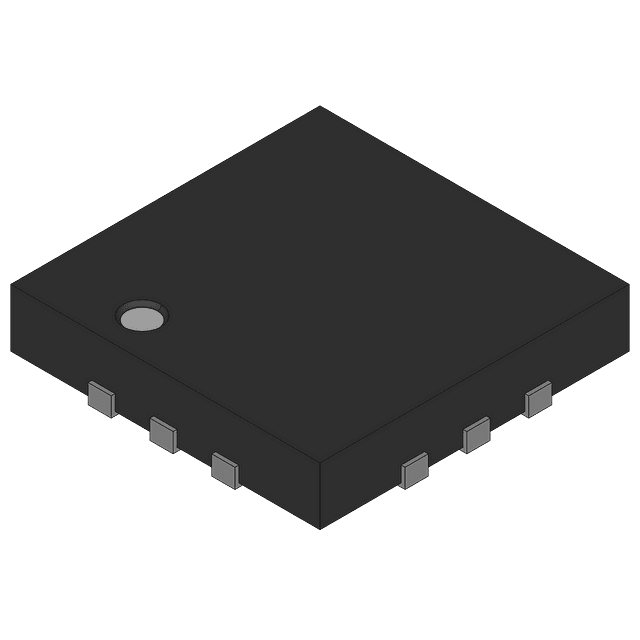

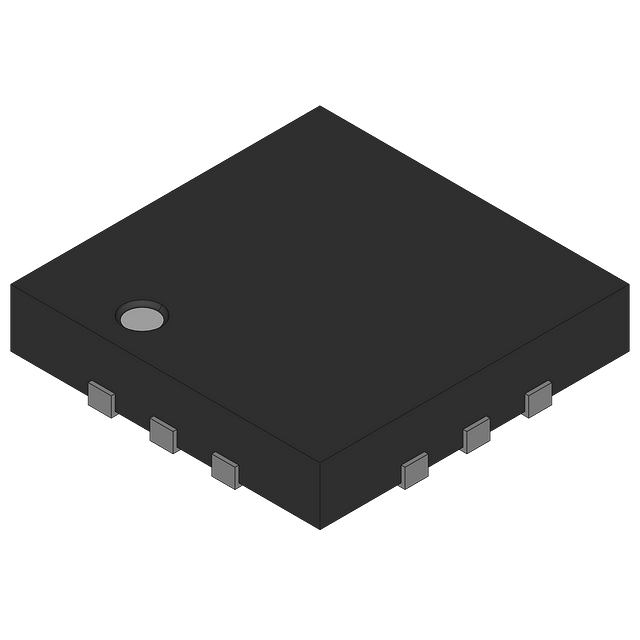

Surface mount 1-in, 2-out RF splitter operating from 54 MHz to 865 MHz. Features a 3dB gain, 4.4dB noise figure, and a -3dB bandwidth of 1.7GHz. Designed for single-ended input and housed in a 12-pin LFCSP EP package with tin, matte contact plating. Operates with a 5V supply voltage (4.5V to 5.5V range) and consumes 78mA. Suitable for applications within a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADA4303-2ACPZ-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADA4303-2ACPZ-R7 technical specifications.
| -3db Bandwidth | 1.7GHz |
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Frequency | 865MHz |
| Gain | 3dB |
| Input Type | SINGLE-ENDED |
| Lead Free | Contains Lead |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Noise Figure | 4.4dB |
| Number of Channels | 2 |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Operating Frequency | 54 MHz to 865 MHz |
| Operating Supply Current | 78mA |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADA4303-2ACPZ-R7 to view detailed technical specifications.
