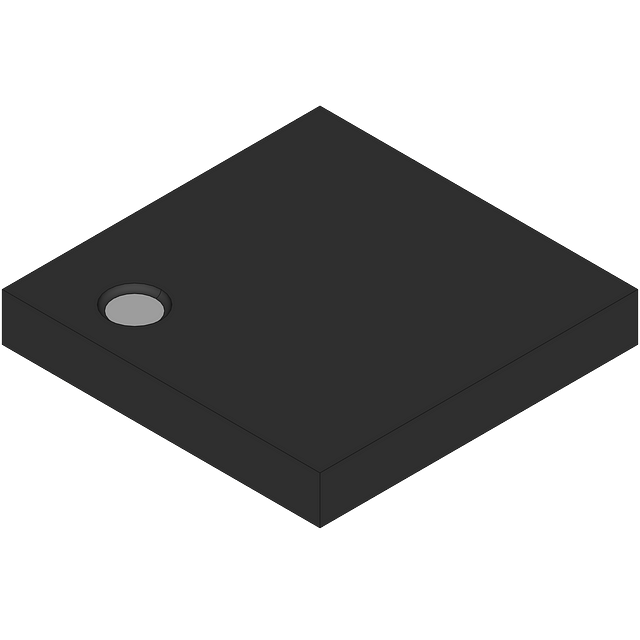

The ADA4304-3ACPZ-R2 is a single-ended RF amplifier with a bandwidth of 1.6GHz and a gain of 3.3dB. It operates within a temperature range of -40°C to 85°C and is packaged in a lead-free LFCSP-16. The amplifier is RoHS compliant and has a maximum supply voltage of 5.25V and a minimum supply voltage of 4.75V. It draws an operating supply current of 92mA at 5V and has a test frequency of 865MHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADA4304-3ACPZ-R2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 1.6GHz |
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Frequency | 865MHz |
| Gain | 3.3dB |
| Input Type | SINGLE-ENDED |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 3 |
| Operating Frequency | 54 MHz to 865 MHz |
| Operating Supply Current | 92mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Test Frequency | 865MHz |
| RoHS | Compliant |
