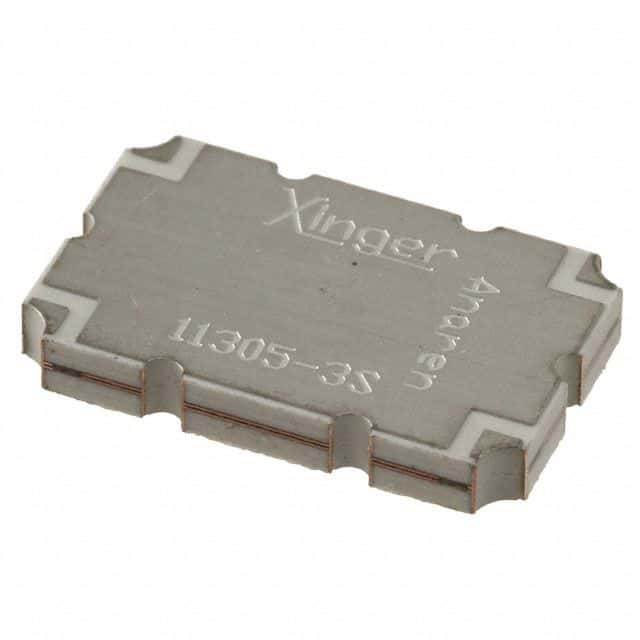

Surface mount RF coupler offering 3dB quadrature coupling across a 1GHz to 2GHz frequency range. Features 0.45dB insertion loss and a maximum power dissipation of 60W. Operates reliably from -55°C to 85°C. Supplied in tape and reel packaging, this RoHS compliant component is ideal for surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Anaren 11305-3S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Frequency | 2GHz |
| Insertion Loss | 0.45dB |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 60W |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Xinger® |
| Termination | SMD/SMT |
| RoHS | Compliant |
