Signal & Power Contact PIN for cable mounting, featuring a crimp termination for 4AWG wire. This non-gendered, male contact is constructed from a copper alloy with silver plating, rated for 120A and 600V AC/DC. It meets UL94 V-0 flammability standards and is RoHS compliant.
Voltage Rating600V
Current Rating120A
MountingCable
Quick Jump:
Technical Specifications
Anderson Power 1319G4 technical specifications.
General
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Silver |
| Contact Type | Non-Gendered |
| Current Rating | 120A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Mount | Cable |
| Number of Contacts | 1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SB® 120 |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 120V |
| Wire/Cable Gauge | 4AWG |
Compliance
| RoHS | Compliant |
Datasheet
Anderson Power 1319G4 Datasheet
Download the complete datasheet for Anderson Power 1319G4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

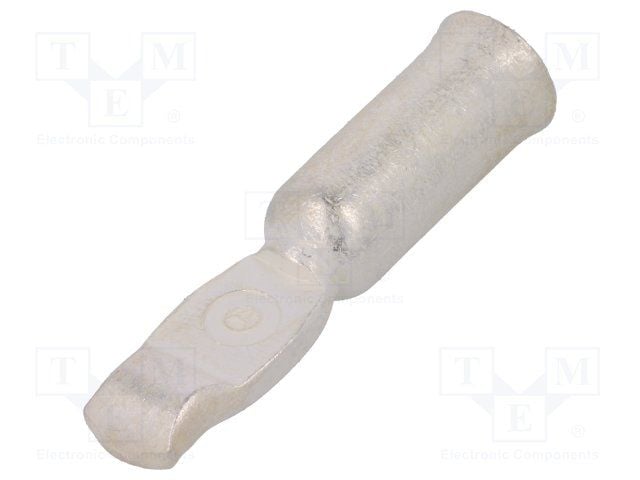

Product Images
