Voltage Rating600V
Current Rating230A
MountingFree Hanging
Quick Jump:
Technical Specifications
Anderson Power 1321 technical specifications.
General
Contact Type
Non-Gendered
Current Rating
230A
Flammability Rating
UL94 V-0
Gender
Hermaphroditic
Housing Color
Blue
Insulation Material
PC
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Free Hanging
Number of Contacts
1
Number of Positions
1
Number of Rows
1
RoHS Compliant
Yes
Series
Powerpole®
Termination
Crimp
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
Anderson Power 1321 Datasheet
Download the complete datasheet for Anderson Power 1321 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

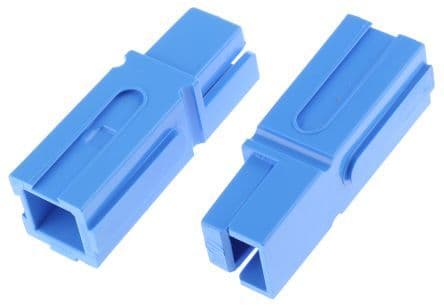

Product Images
