The Anderson Power 1331 is a 30A cable mount contact with a voltage rating of 600V and a current rating of 30A. It is made with a copper alloy, tin, and copper contact material with a silver plating. The contact is crimp terminated and is RoHS compliant. It is not Reach SVHC compliant. The contact is available in a package type of cable mount and is suitable for use with wire gauges between 12AWG and 16AWG.
Package600
Voltage Rating600V
Current Rating30A
MountingCable
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Anderson Power 1331 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Anderson Power 1331 technical specifications.
General
| Package/Case | 600 |
| Contact Material | Copper Alloy, Tin, Copper |
| Contact Plating | Silver |
| Current Rating | 30A |
| Mount | Cable |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Powerpole® |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 30V |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Anderson Power 1331 Datasheet
Download the complete datasheet for Anderson Power 1331 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

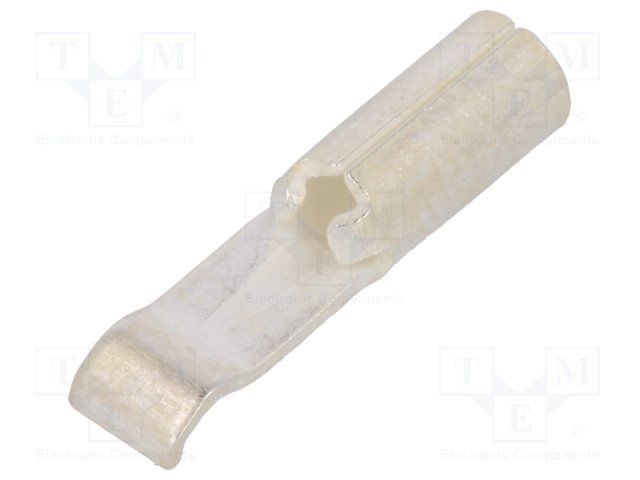

Product Images
