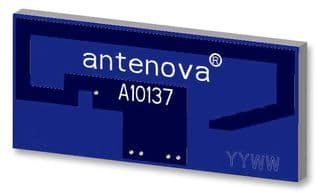

The A10137 is a surface mount chip antenna with a frequency of 1.575GHz and an impedance of 50 ohms. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The antenna is packaged in tape and reel with a single unit per package. It is designed for use in RF and wireless applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Antenova A10137 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Frequency | 1.575GHz |
| Height | 0.063inch |
| Impedance | 50R |
| Length | 20.1mm |
| Max Frequency | 1.575GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bands | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Return Loss | -10dB |
| Series | RADIONOVA® |
| Termination | SMD/SMT |
| VSWR | 1.5 |
| Width | 9mm |
| RoHS | Not CompliantNo |
