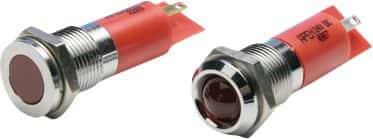

Red LED panel mount indicator with 80mcd luminous intensity and 100° viewing angle. Features a 10mm round, domed, diffused, colored lens and a brass housing. Operates at 24V with a 20mA forward current and 5V reverse voltage. Rated IP67, this indicator offers quick connect termination and a temperature range of -40°C to 85°C.
Voltage24V
Current20mA
MountingPanel
Quick Jump:
Technical Specifications
Apem Q14P1CXXR24E technical specifications.
General
Color
Red
Current
20mA
Forward Current
20mA
Illumination Color
Red
Length
48.5mm
Lens Color
Red
Lens Size
10mm
Lens Style
Round, Domed, Diffused, Colored
Lens Transparency
Diffused
Life (Hours)
100Hour
Luminous Intensity
80mcd
Material
Brass
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of LEDs
1
Operating Supply Voltage
24V
Package Quantity
25
Ratings
IP67
Reverse Voltage
5V
RoHS Compliant
Yes
Series
Q Series
Termination
Quick Connect
Viewing Angle
100°
Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Apem Q14P1CXXR24E Datasheet
Download the complete datasheet for Apem Q14P1CXXR24E to view detailed technical specifications.
