20 Pos RA DIP Socket, 2.54mm Pitch, Solder, Thru-Hole

Aries Electronics

20-823-90T

Name: 20-823-90T Aries Electronics
Brand: Aries Electronics
SKU: 20-823-90T

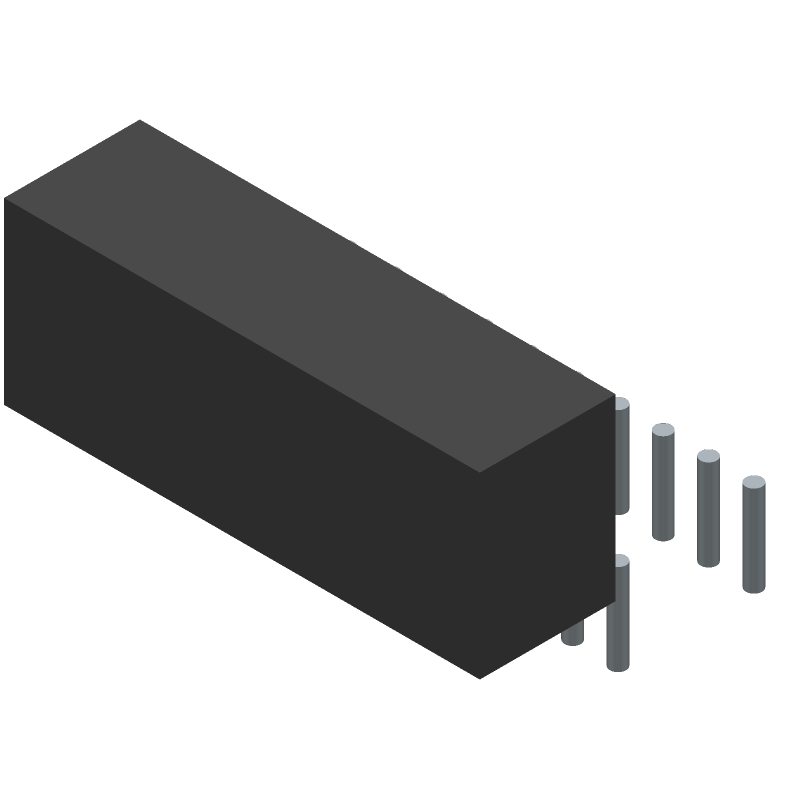

20 Pos RA DIP Socket, 2.54mm Pitch, Solder, Thru-Hole

20-position, 2-row dual in-line package (DIP) socket with a 2.54mm pitch. Features right-angle, through-hole mounting with a solder termination. Constructed from thermoplastic material with bronze contacts plated in tin, offering a 1.5A current rating and a temperature range of -55°C to 105°C. Compliant with RoHS standards and UL94 V-0 flammability rating.

Current Rating1.5A

MountingThrough Hole, Horizontal

Quick Jump:

Technical Specifications

Aries Electronics 20-823-90T technical specifications.

General

Contact Finish - Mating	TIN
Contact Material	Bronze
Contact Plating	Tin
Current Rating	1.5A
Flammability Rating	UL94 V-0
Height	52.1mm
Lead Free	Lead Free
Length	26.67mm
Material	Thermoplastic
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Through Hole, Horizontal
Number of Contacts	20
Number of Rows	2
Orientation	Right Angle
Package Quantity	1
Packaging	Bulk
Pitch	2.54mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	7.62mm
Series	Vertisockets™ 800
Termination	Solder
Width	9.91mm
