Technical Specifications
Assmann A-USBSA technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
14.5mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
7.4mm
Insulation Color
Black
Lead Free
Contains Lead
Length
14mm
Mating Cycles
1500
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole, Horizontal
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Orientation
Right Angle
Packaging
Tray
RoHS Compliant
Yes
Termination
Solder
Width
14.7mm
Compliance
RoHS
Compliant
Datasheet
Assmann A-USBSA Datasheet
Download the complete datasheet for Assmann A-USBSA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

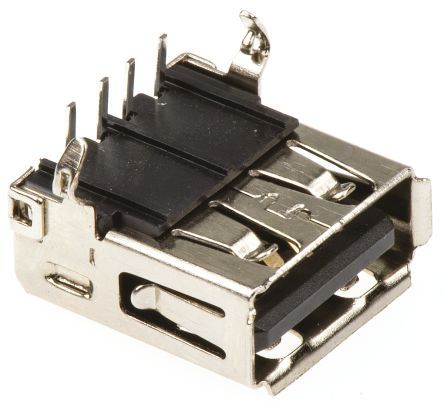

Product Images
