Technical Specifications
Assmann AU-Y1007-R technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 10.6mm |
| Insulation Color | White |
| Lead Free | Lead Free |
| Length | 16mm |
| Mating Cycles | 1500 |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Horizontal |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Right Angle |
| Packaging | Tray |
| Pitch | 2.5mm |
| RoHS Compliant | Yes |
| Termination | Solder |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Assmann AU-Y1007-R Datasheet
Download the complete datasheet for Assmann AU-Y1007-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

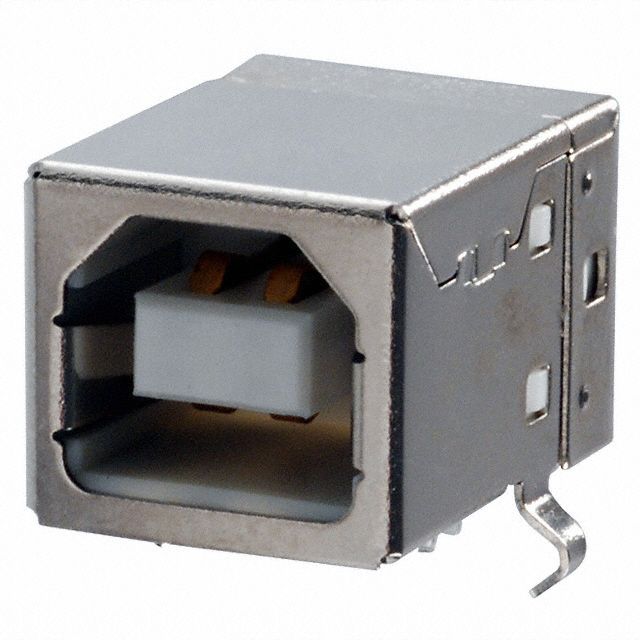

Product Images
