26-conductor flat ribbon cable featuring 28AWG copper conductors and a 1.27mm (0.05 inch) pitch. Insulated with PVC, this unshielded cable offers a voltage rating of 300V and operates within a temperature range of -10°C to 105°C. The cable is UL approved, UL VW-1 flammability rated, and RoHS compliant, supplied on a 91.44m (300ft) reel.
Package300
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Assmann AWG28-26/G/300 technical specifications.
General
| Approvals | UL |
| Cable Pitch | 1.27mm |
| Package/Case | 300 |
| Color | Grey |
| Conductor Material | Copper |
| First Conductor Mark | Red |
| Flammability Rating | UL VW-1 |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -10°C |
| Mount | Cable |
| Number of Conductors | 26 |
| Number of Positions | 26 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.05inch |
| Ribbon Thickness | 0.035inch |
| Ribbon Width | 1.3inch |
| RoHS Compliant | Yes |
| Series | AWG |
| Shielding | Unshielded |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Flat |
Compliance
| RoHS | Not Compliant |
Datasheet
Assmann AWG28-26/G/300 Datasheet
Download the complete datasheet for Assmann AWG28-26/G/300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

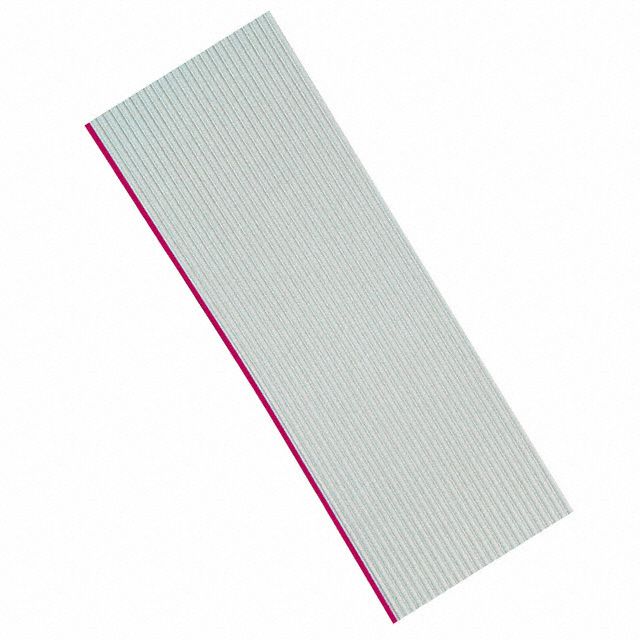

Product Images
