This SMB RF connector features a brass body with gold plating, a gold center contact with a brass base, and a PTFE dielectric material. It has an impedance of 50 ohms and can withstand 500 mating cycles. The connector operates over a temperature range of -65°C to 165°C and is suitable for use in applications up to 4 GHz. It is RoHS compliant and available in a bulk packaging quantity of 25.
Frequency4GHz
PackageSMB
Voltage Rating335V
MountingThrough Hole, Panel, Bulkhead, Front Side Nut
Quick Jump:
Technical Specifications
BEL 131-3701-231 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMB |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Housing Color | Gold |
| Impedance | 50R |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole, Panel, Bulkhead, Front Side Nut |
| Number of Ports | 1 |
| Operating Frequency | 0 to 4 GHz |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 335V |
Compliance
| RoHS | Compliant |
Datasheet
BEL 131-3701-231 Datasheet
Download the complete datasheet for BEL 131-3701-231 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

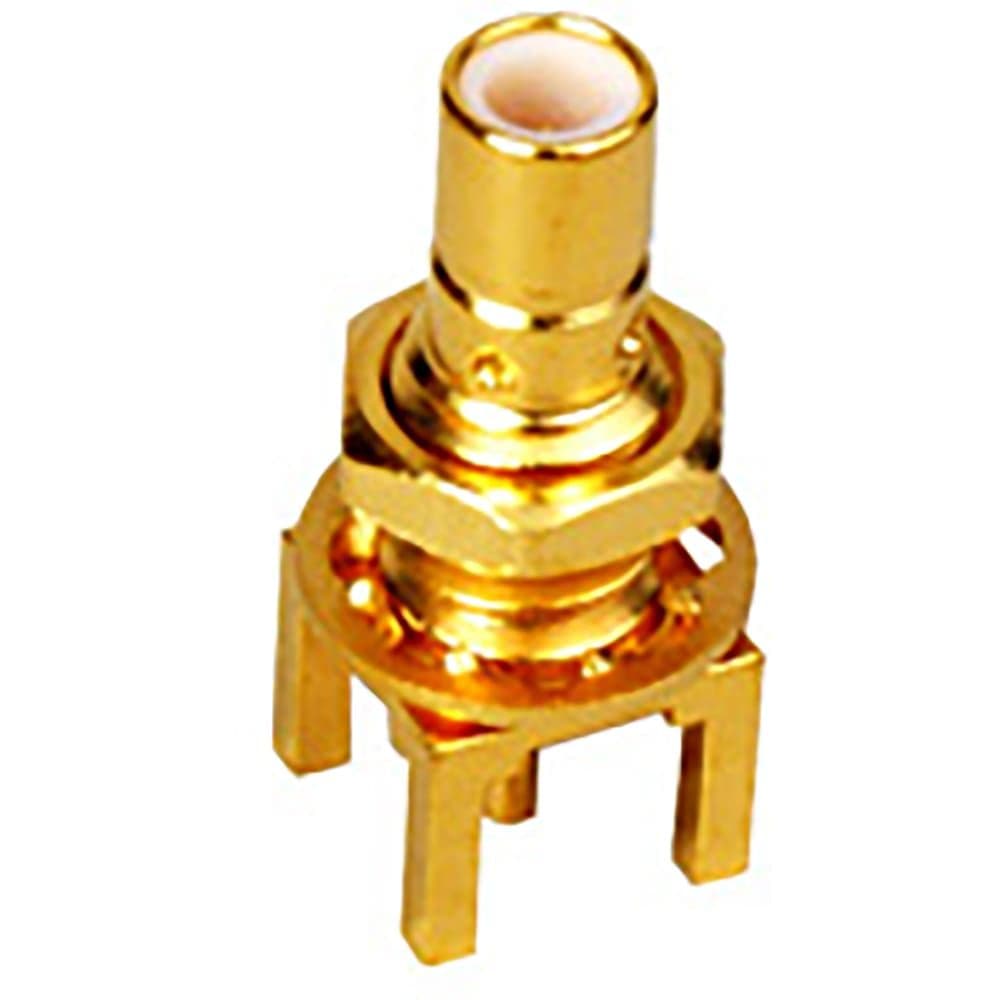

Product Images
