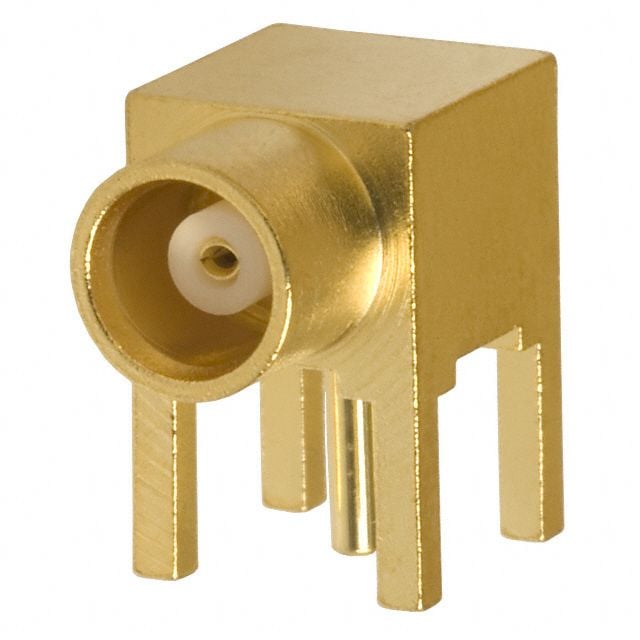

Right-angle RF MCX connector for board mounting, featuring a brass body with gold plating and a PTFE dielectric. This female jack offers a 50-ohm impedance, 6GHz maximum frequency, and a solder termination. It supports up to 500 mating cycles and operates within a temperature range of -65°C to 165°C, with a voltage rating of 335V. RoHS compliant and designed for through-hole PCB mounting.
Frequency6GHz
Voltage Rating335V
MountingThrough Hole, PCB
PolarityStandard
Quick Jump:
Technical Specifications
BEL 133-3701-301 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Frequency
6GHz
Gender
Male
Housing Color
Gold
Impedance
50R
Insertion Loss
0.2dB
Mating Cycles
500
Max Frequency
6GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Through Hole, PCB
Number of Ports
1
Operating Frequency
0 to 6 GHz
Orientation
Right Angle
Package Quantity
25
Packaging
Bulk
Polarity
Standard
Radiation Hardening
No
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
335V
Compliance
RoHS
Compliant
Datasheet
BEL 133-3701-301 Datasheet
Download the complete datasheet for BEL 133-3701-301 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
