RF SMA connector, featuring a straight, male configuration with a through-hole mount and solder termination. This component offers a 50 Ohm impedance and operates from DC up to 18 GHz, with a maximum operating temperature of 165°C. The body and contact plating are gold, utilizing copper for the contact material. It is RoHS compliant and designed for board mounting.
Frequency18GHz
PackageSMA
MountingThrough Hole
Quick Jump:
Technical Specifications
BEL 142-0701-201 technical specifications.
General
| Body Plating | Gold |
| Package/Case | SMA |
| Contact Material | Copper |
| Contact Plating | Gold |
| Gender | Male |
| Impedance | 50R |
| Max Frequency | 18GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SMA |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
BEL 142-0701-201 Datasheet
Download the complete datasheet for BEL 142-0701-201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

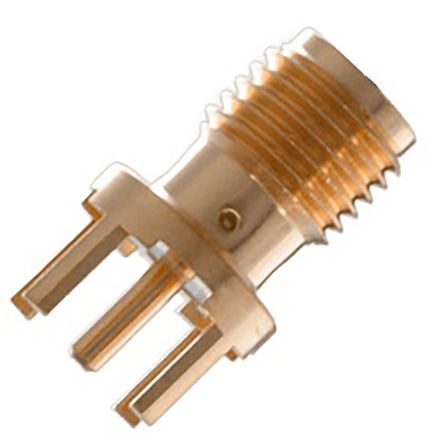

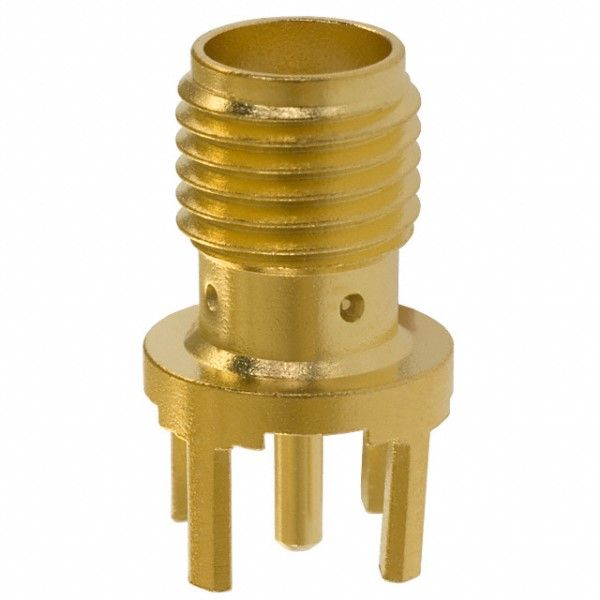

Product Images
