RF SMA connector, receptacle, panel mount with solder termination. Features brass body with gold plating, copper center contact with gold plating, and PTFE dielectric. Operates from 0 to 18 GHz with 50 Ohm impedance. Rated for 335V and 500 mating cycles, with a temperature range of -65°C to 165°C.
Frequency18GHz
PackageSMA
Voltage Rating335V
MountingPanel, Bulkhead, Front Side Nut
Quick Jump:
Technical Specifications
BEL 142-0701-411 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 18GHz |
| Housing Color | Gold |
| Impedance | 50R |
| Length | 0.67inch |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Panel, Bulkhead, Front Side Nut |
| Number of Ports | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 335V |
Compliance
| RoHS | Compliant |
Datasheet
BEL 142-0701-411 Datasheet
Download the complete datasheet for BEL 142-0701-411 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

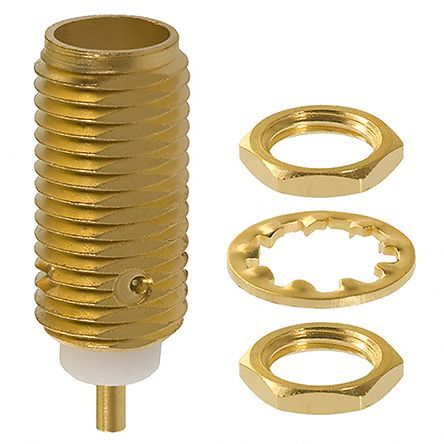

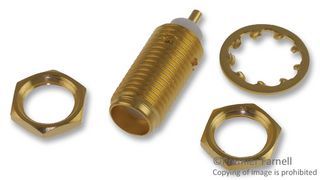

Product Images
