RF SMA connector, female, board mount, surface mount terminal, locking, straight orientation, 1 contact. Features 50 Ohm impedance, 18 GHz maximum frequency, and a PTFE dielectric. Constructed with a brass body, copper contacts with gold plating, and a PTFE insulator. Operates from -65°C to 165°C, is RoHS compliant, and lead-free.
Frequency18GHz
PackageSMA
MountingEdge
PolarityNormal
Quick Jump:
Technical Specifications
BEL 142-0701-801 technical specifications.
General
| Body Material | Brass |
| Package/Case | SMA |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Gender | Female |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | PTFE |
| Lead Free | Lead Free |
| Max Frequency | 18GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Edge |
| Number of Contacts | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Polarity | Normal |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SMA |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
BEL 142-0701-801 Datasheet
Download the complete datasheet for BEL 142-0701-801 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

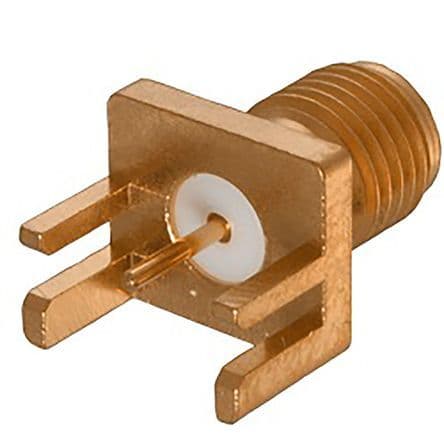

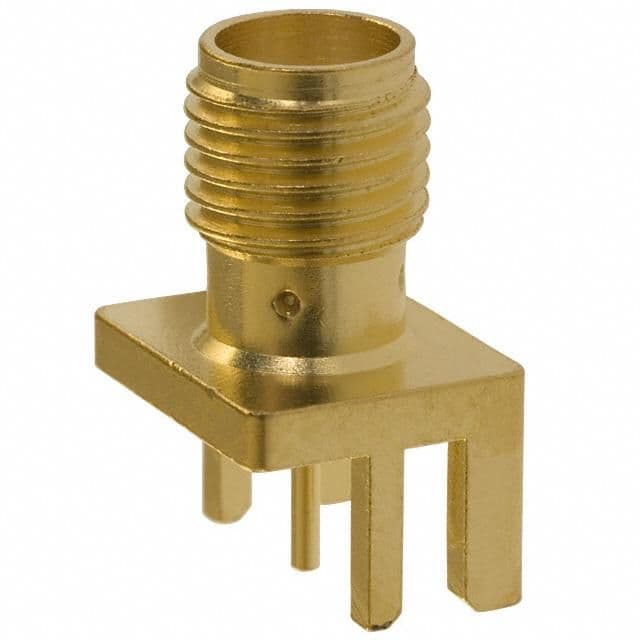

Product Images
