RF coaxial connector, SMA series, straight orientation, designed for edge mounting. Features 50 Ohm impedance, brass contacts with gold plating, and a solder termination. Operates from DC to 18 GHz with a maximum operating temperature of 165°C and a minimum of -65°C. RoHS compliant.
Frequency18GHz
PackageSMA
MountingEdge
Quick Jump:
Technical Specifications
BEL 142-0701-851 technical specifications.
General
| Package/Case | SMA |
| Contact Material | Brass |
| Contact Plating | Gold |
| Impedance | 50R |
| Max Frequency | 18GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Edge |
| Operating Frequency | 0 to 18 Hz to GHz |
| Orientation | Straight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
BEL 142-0701-851 Datasheet
Download the complete datasheet for BEL 142-0701-851 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

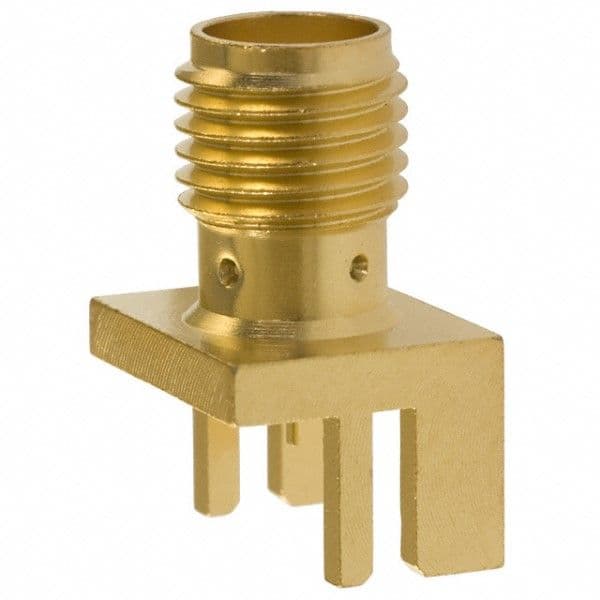

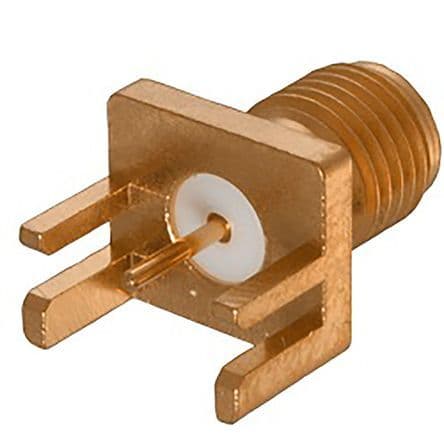

Product Images
