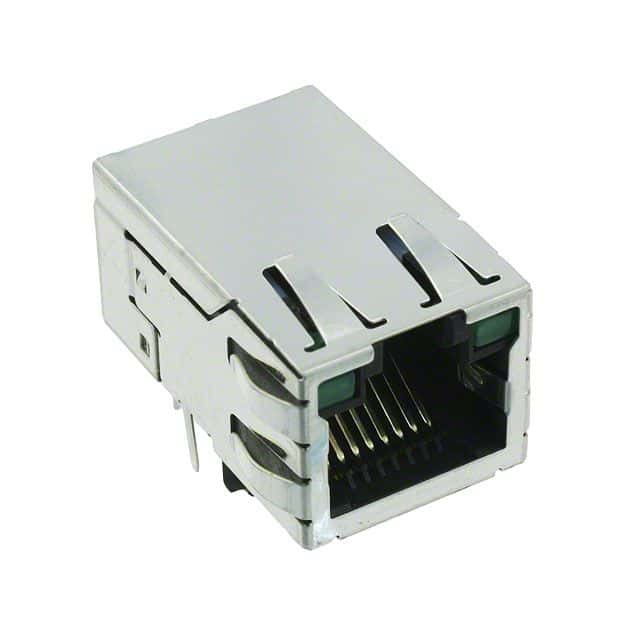

Right-angle, shielded modular Ethernet connector featuring 10 loaded positions and 8 cores per jack. This female connector utilizes a copper alloy contact material with gold plating for reliable conductivity. Designed for through-hole mounting with solder termination, it operates within a temperature range of 0°C to 70°C and is RoHS compliant. The connector has a metal package and a 2.54mm pitch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the BEL SI-51005-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Metal |
| Color | Green, Silver |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Depth | 25.4mm |
| Direction | Up |
| Gender | Female |
| Length | 17.98mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Positions Loaded | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tray |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | MagJack® ST SI-50000 |
| Shielding | Shielded |
| Termination | Solder |
| RoHS | Compliant |
