Shielded, 8-position, 1-port RJ45 connector with a right-angle, through-hole mount. Features 4 cores per jack, 12 solder terminals, and a green housing. Constructed with gold-plated copper alloy contacts and rated UL94 V-0 for flammability. RoHS compliant and designed for reliable signal integrity.
MountingThrough Hole
Quick Jump:
Technical Specifications
BEL SI-52003-F technical specifications.
General
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Direction | Up |
| Flammability Rating | UL94 V-0 |
| Mount | Through Hole |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Package Quantity | 50 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | MagJack® ST SI-50000 |
| Shielding | Shielded |
| Termination | Solder |
| Weight | 0.17637oz |
Compliance
| RoHS | Compliant |
Datasheet
BEL SI-52003-F Datasheet
Download the complete datasheet for BEL SI-52003-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

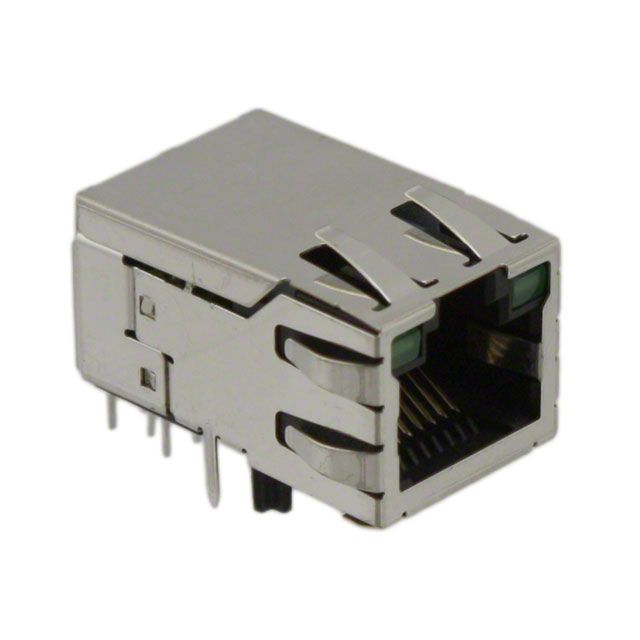

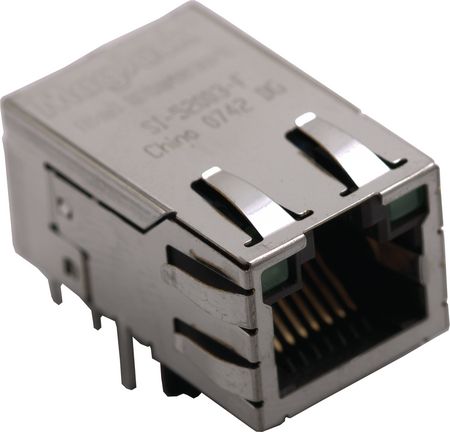

Product Images
