8-contact, female, right-angle I/O connector with a shielded, through-hole mount design. Features gold-plated copper alloy contacts and a 2.54mm pitch, suitable for telecom and datacom applications. This connector offers 4 cores per jack and a solder termination for reliable connectivity.
MountingThrough Hole
Quick Jump:
Technical Specifications
BEL SI-60005-F technical specifications.
General
| Color | Green, Yellow |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Depth | 21.59mm |
| Direction | Down |
| Gender | Female |
| Length | 17.98mm |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Positions Loaded | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tray |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | MagJack® ST SI-60000 |
| Shielding | Shielded |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
BEL SI-60005-F Datasheet
Download the complete datasheet for BEL SI-60005-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

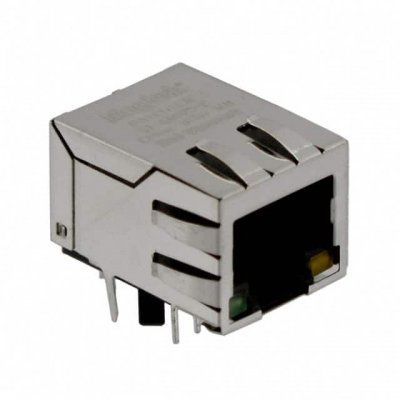

Product Images
