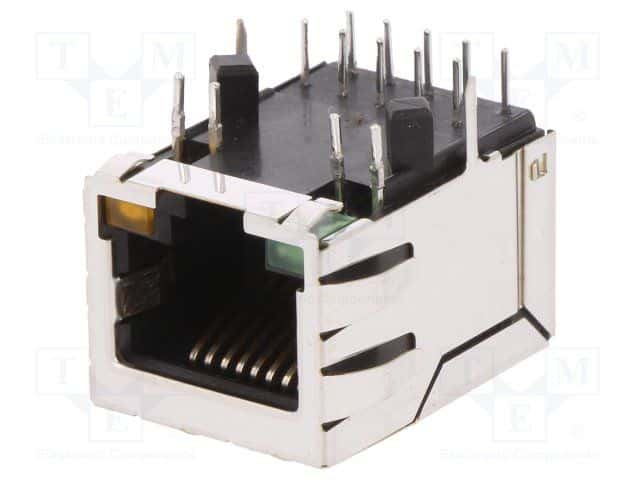

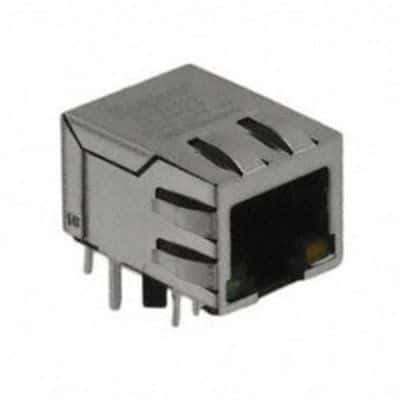

Shielded, right-angle I/O connector featuring 8 contacts and 8 loaded positions within a single row. This through-hole mount jack utilizes a metal package and offers solder termination with copper alloy contacts plated in gold. Operating within a temperature range of 0°C to 70°C, it boasts a UL94 V-0 flammability rating.
PackageMetal
MountingThrough Hole
Quick Jump:
Technical Specifications
BEL SI-61001-F technical specifications.
General
| Package/Case | Metal |
| Color | Green, Yellow, Silver |
| Contact Material | Copper Alloy, Gold, Copper |
| Contact Plating | Gold |
| Depth | 21.59mm |
| Direction | Down |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Length | 17.98mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Positions Loaded | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tray |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MagJack® ST SI-60000 |
| Shielding | Shielded |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
BEL SI-61001-F Datasheet
Download the complete datasheet for BEL SI-61001-F to view detailed technical specifications.
