The SMP500 series power resistor is a surface mount device with a current rating of 500mA and a maximum operating temperature of 125°C. It is approved for use in cURus and CE applications and is compliant with RoHS regulations. The resistor has a power dissipation of 200mW and a voltage rating of 125V DC. It is packaged in cut tape and has a lead-free construction.
PackageSMD/SMT
Current Rating500mA
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
BEL SMP500 technical specifications.
General
| Approvals | cURus, CE |
| Package/Case | SMD/SMT |
| Current Rating | 500mA |
| DC Cold Resistance | 320mR |
| Depth | 3.05mm |
| Lead Free | Lead Free |
| Length | 9.65mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Power Dissipation | 200mW |
| RoHS Compliant | Yes |
| Series | SMP |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
BEL SMP500 Datasheet
Download the complete datasheet for BEL SMP500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

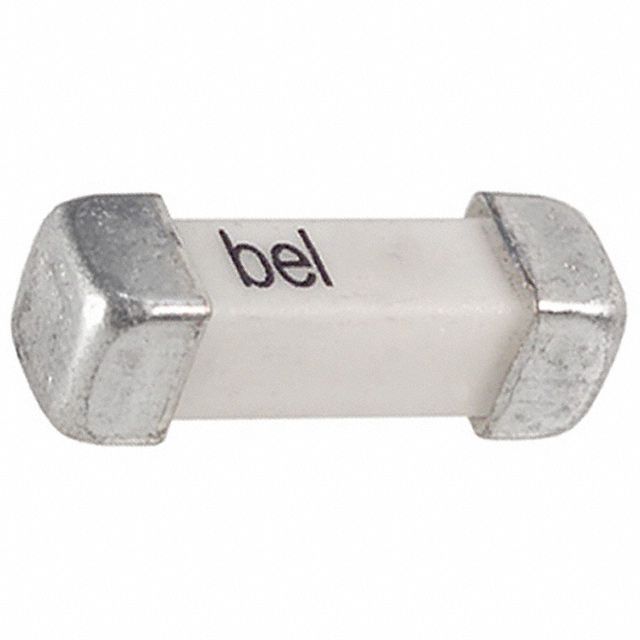

Product Images
