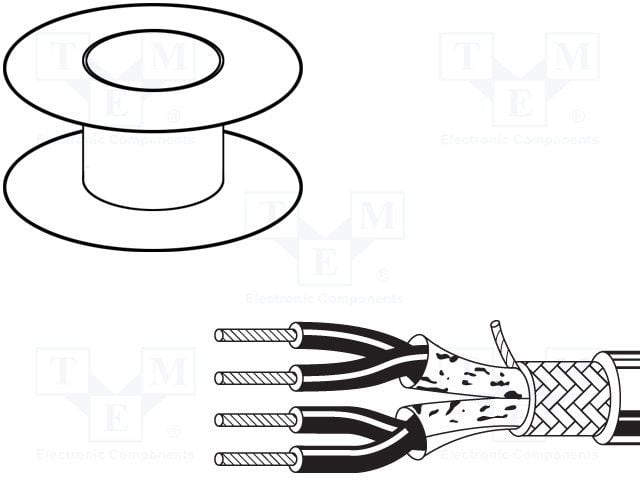

Shielded multi-pair cable, 18AWG, featuring 4 conductors arranged as 2 pairs. Constructed with copper conductors and PVC insulation and jacket, this 500-foot spool offers a 300V voltage rating and 8A current rating. Operating within a temperature range of -20°C to 75°C, the cable is UL, CE, and NEC approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Belden 3082AT5U500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Belden 3082AT5U500 technical specifications.
| Approvals | UL, CE, NEC |
| Color | Grey |
| Conductor Material | Copper |
| Current Rating | 8A |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 500foot |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 4 |
| Number of Cores | 4 |
| Number of Pairs | 2 |
| Number of Strands | 19 |
| Outside Diameter | 12.19mm |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| Series | DeviceBus® |
| Shielding | Shielded |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 68.5lb |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Multi-Pair |
| RoHS | Compliant |
