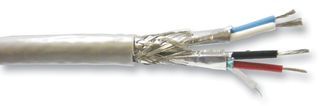

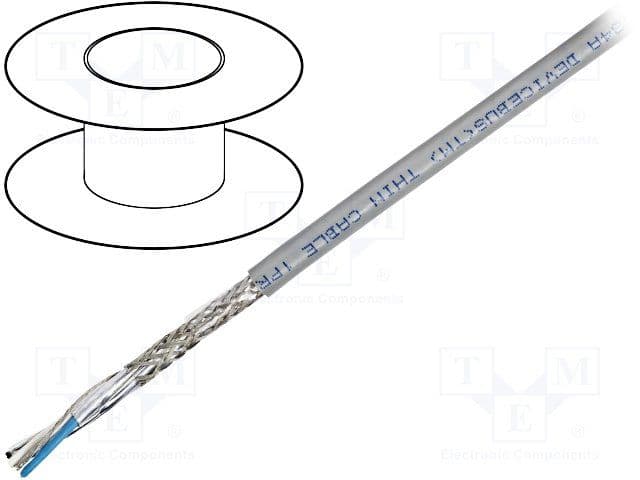

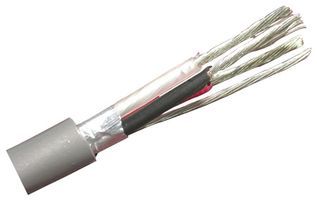

Shielded multi-pair cable featuring 24AWG copper conductors, 1 pair, and 4 cores. This 500-foot grey cable offers a 300V voltage rating and 600V DC rated voltage, with a 1.7A current rating. Constructed with PVC insulation and jacket, it operates between -20°C and 75°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Belden 3084AT5U500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Belden 3084AT5U500 technical specifications.
| Approvals | UL, CE, NEC |
| Color | Grey |
| Conductor Material | Copper |
| Current Rating | 1.7A |
| Diameter | 0.28inch |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 500foot |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 2 |
| Number of Cores | 4 |
| Number of Pairs | 1 |
| Number of Strands | 19 |
| Outside Diameter | 7.1mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DeviceBus® |
| Shielding | Shielded |
| Voltage Rating | 300V |
| DC Rated Voltage | 600V |
| Weight | 23.5lb |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Multi-Pair |
| RoHS | Compliant |
