Belden
7921A0101000
BELDEN 7921A 0101000 Shielded Networking Cable, DataTuff, Cat5e, 4 Pair, 24 AWG, 1000 ft, 304.8 m
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Belden 7921A0101000 technical specifications.
General
Approvals
UL, NEC
Color
Black
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
PVC
Length
1000foot
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Conductors
8
Number of Pairs
4
Outside Diameter
6.07mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DataTuff®
Shielding
Shielded
Voltage Rating
300V
DC Rated Voltage
300V
Weight
54lb
Wire/Cable Gauge
24AWG
Wire/Cable Type
Multi-Pair, Twisted Pair
Compliance
RoHS
Compliant
Datasheet
Belden 7921A0101000 Datasheet
Download the complete datasheet for Belden 7921A0101000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

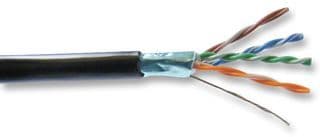

Product Images
