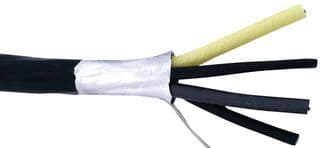

This shielded multi-pair twisted pair cable is constructed with 22AWG copper conductors and features a FEP insulation and jacket material. It has a maximum operating temperature range of -70°C to 200°C and is available in a 1000ft length. The cable is RoHS compliant and has a voltage rating of 300V. It is packaged on a spool and has a weight of 21lb.
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Belden 887230021000 technical specifications.
General
| Approvals | UL, CE, NEC |
| Color | Red |
| Conductor Material | Copper |
| Insulation Material | FEP |
| Jacket Material | FEP |
| Length | 1000foot |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -70°C |
| Mount | Cable |
| Number of Conductors | 4 |
| Number of Pairs | 2 |
| Outside Diameter | 3.76mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 7 x 30 |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 21lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Pair, Twisted Pair |
Compliance
| RoHS | Compliant |
Datasheet
Belden 887230021000 Datasheet
Download the complete datasheet for Belden 887230021000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
