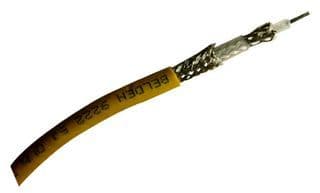

Coaxial cable assembly featuring a 20 AWG stranded copper conductor with a PE dielectric, designed for 50-ohm impedance. This double-braided shielded cable offers robust RF performance with a PVC jacket and insulation, suitable for operation between -40°C and 75°C. The assembly is RoHS compliant and rated for 1.4kV AC, provided on a 500-foot spool.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Belden 9222 004500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CE |
| Color | Yellow |
| Conductor Material | Copper |
| Dielectric Material | PE |
| Impedance | 50R |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 500foot |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Outside Diameter | 0.24inch |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 7 x 28 |
| Voltage Rating (AC) | 1.4kV |
| Weight | 21lb |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Coaxial |
| RoHS | Compliant |
