Technical Specifications
Belden 931969100 technical specifications.
General
| Color | Black |
| Current Rating | 16A |
| Gender | Female |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Screw |
| Ratings | IP65 |
| Termination | Screw |
| Voltage Rating | 250V |
| Wire/Cable Diameter | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Belden 931969100 Datasheet
Download the complete datasheet for Belden 931969100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

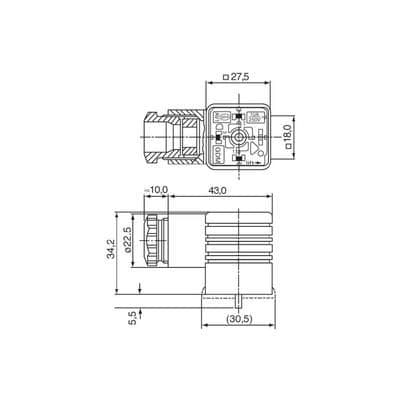

Product Images
