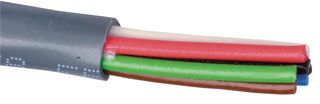

40-conductor, 22AWG multi-conductor cable featuring a chrome polyvinyl chloride (PVC) jacket and PVC insulation. This unshielded cable is constructed with stranded copper conductors (7 x 30) and has an outside diameter of 11.557mm. Rated for 300VAC, it operates within a temperature range of -20°C to 80°C and is RoHS compliant. The cable is supplied on a 100-foot spool and carries UL, CEC, and NEC approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Belden 9433 060100 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CEC, NEC |
| Color | Chrome |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 40 |
| Outside Diameter | 11.557mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Stranding | 7 x 30 |
| Voltage Rating | 300V |
| Weight | 16.6lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Conductor |
| RoHS | Compliant |
