This shielded multi-pair cable features 16 conductors, 8 pairs, and a 24AWG wire gauge. It has a PVC insulation material and a PVC jacket material. The cable is available in a 100-foot length and is packaged on a spool. It has a maximum operating temperature of 80°C and a minimum operating temperature of -30°C. The cable is RoHS compliant and has UL, CSA, CE, and NEC approvals.
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Belden 9508060100 technical specifications.
General
| Approvals | UL, CSA, CE, NEC |
| Color | Chrome |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Cable |
| Number of Conductors | 16 |
| Number of Pairs | 8 |
| Outside Diameter | 8.23mm |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 7 x 32 |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 6.4lb |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Multi-Pair, Twisted Pair |
Compliance
| RoHS | Compliant |
Datasheet
Belden 9508060100 Datasheet
Download the complete datasheet for Belden 9508060100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

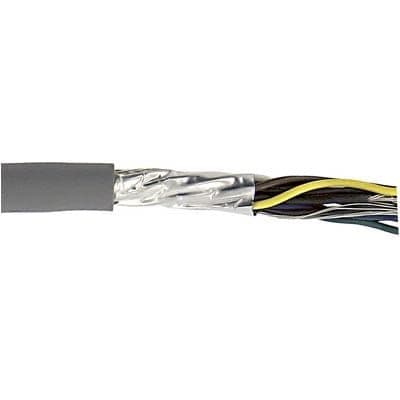

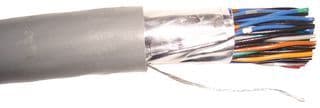

Product Images
