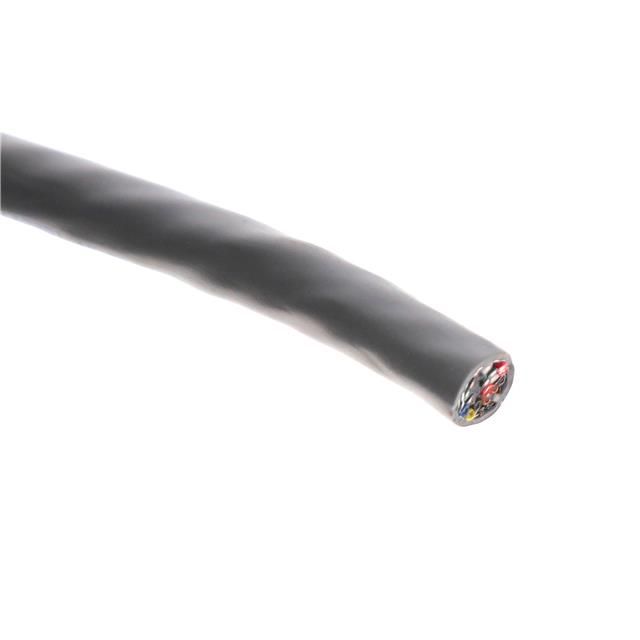

18-conductor, 24AWG shielded multi-conductor cable featuring twisted pairs for enhanced signal integrity. Constructed with copper conductors and PVC insulation and jacket, this cable offers a 300V voltage rating and a maximum operating temperature of 80°C. The semi-rigid polyvinyl chloride construction and chrome color provide durability and a distinct appearance. Supplied on a 152.4m (500ft) reel, this cable is UL, CSA, CE, and NEC approved, and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Belden 9509 060500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE, NEC |
| Color | Chrome |
| Conductor Material | Copper |
| Current Rating | 1.1A |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 500foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Cable |
| Number of Conductors | 18 |
| Number of Cores | 18 |
| Number of Pairs | 9 |
| Outside Diameter | 8.48mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 7 x 32 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 34lb |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Multi-Pair, Twisted Pair |
| RoHS | Compliant |
