Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications

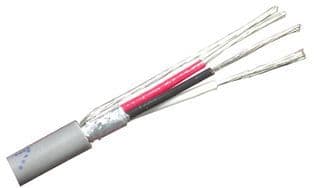

Belden 9533060500 technical specifications.
General
Approvals
UL, CE, NEC
Color
Chrome
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
PVC
Length
500foot
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Cable
Number of Conductors
3
Number of Cores
3
Outside Diameter
4.11mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Shielded
Stranding
7 x 32
Voltage Rating
300V
DC Rated Voltage
300V
Weight
9lb
Wire/Cable Gauge
24AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Belden 9533060500 Datasheet
Download the complete datasheet for Belden 9533060500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
