Technical Specifications
Binder 09-0136-70-03 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Bronze, Gold, Silver, CuZn |
| Contact Plating | Silver |
| Current Rating | 7A |
| Gender | Male |
| Insulation Material | PA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 3 |
| Orientation | Right Angle |
| Ratings | IP40 |
| Series | 682 |
| Termination | Solder |
| Voltage Rating | 250V |
| Wire/Cable Diameter | -6mm |
Compliance
| RoHS | Compliant |
Datasheet
Binder 09-0136-70-03 Datasheet
Download the complete datasheet for Binder 09-0136-70-03 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

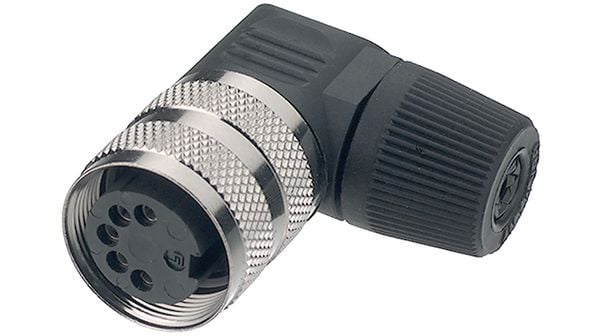

Product Images
