Technical Specifications
Binder 99 9125 00 08 technical specifications.
General
| Body Material | Nylon, Polyamide |
| Contact Gender | Male |
| Contact Material | Brass, Gold, Tin, CuZn |
| Contact Plating | Gold |
| Current Rating | 7A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 8 |
| Orientation | Straight |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 720 |
| Strain Relief | Yes (With) |
| Termination | Solder |
| Voltage Rating | 125V |
| Wire/Cable Diameter | -4mm |
| Working Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Binder 99 9125 00 08 Datasheet
Download the complete datasheet for Binder 99 9125 00 08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

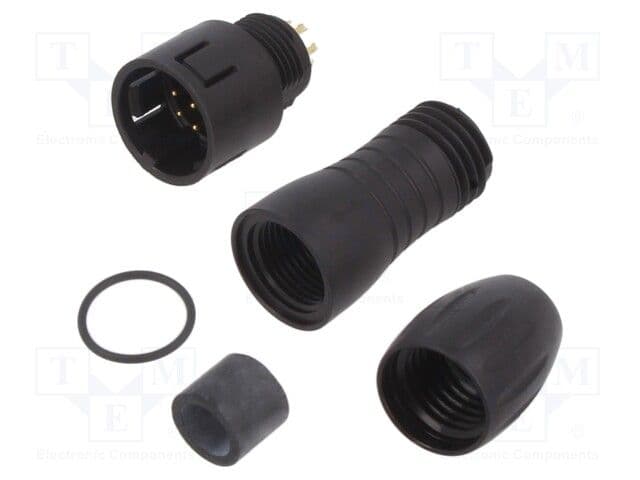

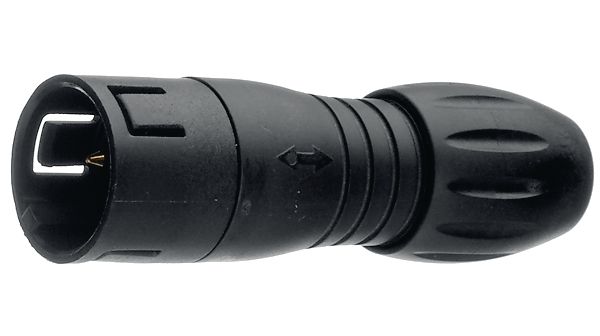

Product Images
