Round, domed LED light pipe, 9.5mm length with a 2.8mm diameter. Features a clear polycarbonate body and lens, designed for vertical, straight orientation. Mounts via panel press-fit from the front. This rigid light pipe is lead-free and RoHS compliant.
MountingPanel, Press-Fit, Front
Quick Jump:
Technical Specifications
Bivar PLP2-375 technical specifications.
General
Body Length
0.375inch
Color
Clear
Diameter
2.8mm
Height
800um
Housing Color
Clear
Lead Free
Lead Free
Length
9.5mm
Lens Size
3.1mm
Lens Style
Round, Domed
Material
PC, Polycarbonate
Mount
Panel, Press-Fit, Front
Number of Columns
1
Number of Rows
1
Number of Ways
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
PLP2
Compliance
RoHS
Compliant
Datasheet
Bivar PLP2-375 Datasheet
Download the complete datasheet for Bivar PLP2-375 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

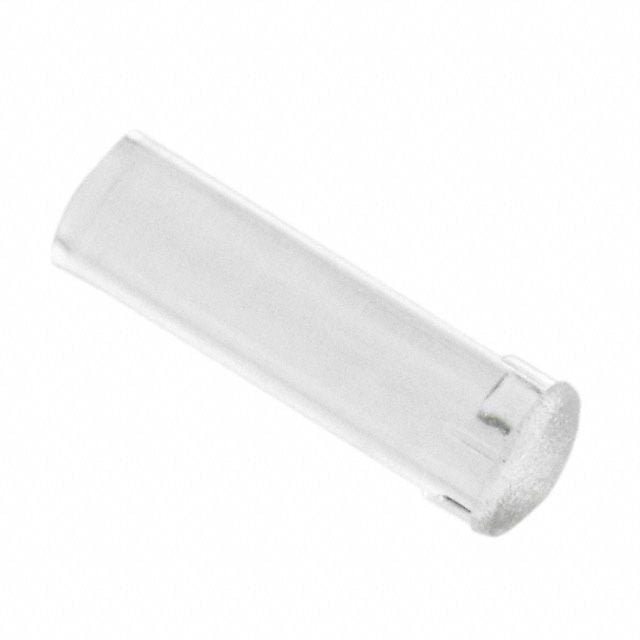

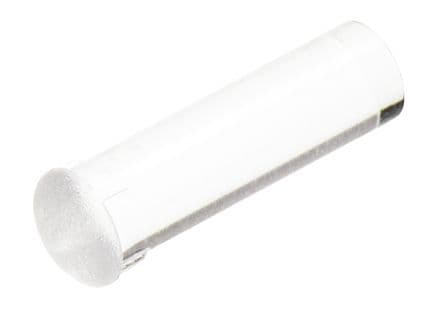

Product Images
