Surface mount dual color LED emitter featuring a 1204 (3210 metric) package. Emits green and orange light with a luminous intensity of 28.5mcd at a forward current of 20mA. Offers a wide 130° viewing angle and a clear, colorless dome lens. Operates within a temperature range of -30°C to 80°C. RoHS compliant and lead-free.
Package1204
MountingSurface Mount
Quick Jump:
Technical Specifications
Bivar SM1204BC-A/G technical specifications.
General
Case Code (Imperial)
1204
Case Code (Metric)
3210
Package/Case
1204
Color
Green, Orange
Forward Current
20mA
Height
1mm
Illumination Color
Green, Orange
Lead Free
Lead Free
Length
3.2mm
Lens Color
Colorless
Lens Style
Round, Clear, Dome
Lens Transparency
Clear
Luminous Intensity
28.5mcd
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
130°
Width
1mm
Compliance
RoHS
Compliant
Datasheet
Bivar SM1204BC-A/G Datasheet
Download the complete datasheet for Bivar SM1204BC-A/G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

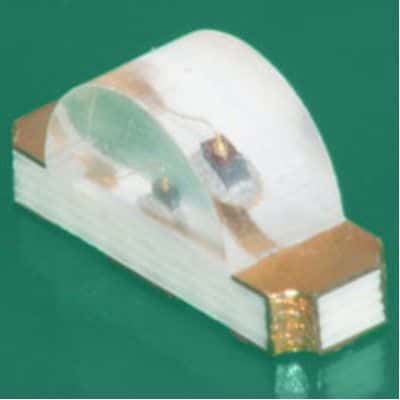

Product Images
