Surface mount dual color LED emitter, 1210 package size (3.2mm x 2.7mm x 1.1mm), featuring green and red illumination. Operates with a 20mA forward current, delivering 28mcd luminous intensity. Offers a wide 130° viewing angle with a clear, colorless lens. This lead-free, RoHS compliant component is supplied on tape and reel, ideal for high-volume applications.
Package1210
MountingSurface Mount
Quick Jump:
Technical Specifications
Bivar SM1210BC-SR/HG technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Color
Green, Red
Forward Current
20mA
Height
1.1mm
Illumination Color
Green, Red
Lead Free
Lead Free
Length
3.2mm
Lens Color
Colorless
Lens Style
Clear
Lens Transparency
Clear
Luminous Intensity
28mcd
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Viewing Angle
130°
Width
2.7mm
Compliance
RoHS
Compliant
Datasheet
Bivar SM1210BC-SR/HG Datasheet
Download the complete datasheet for Bivar SM1210BC-SR/HG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

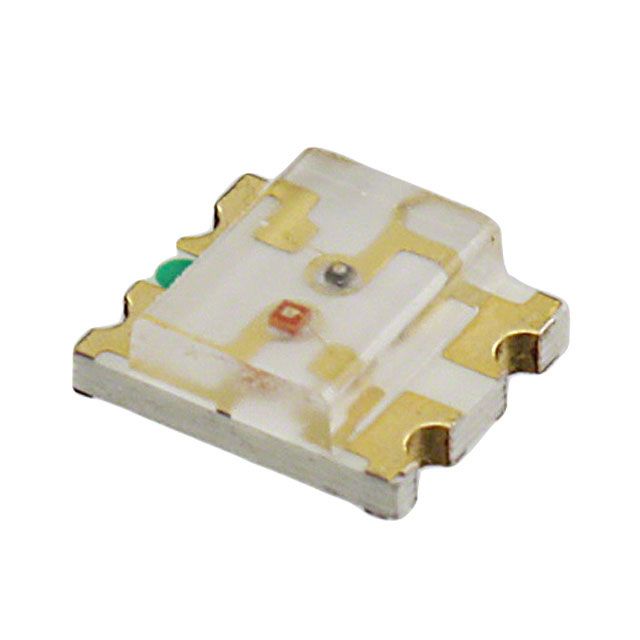

Product Images
