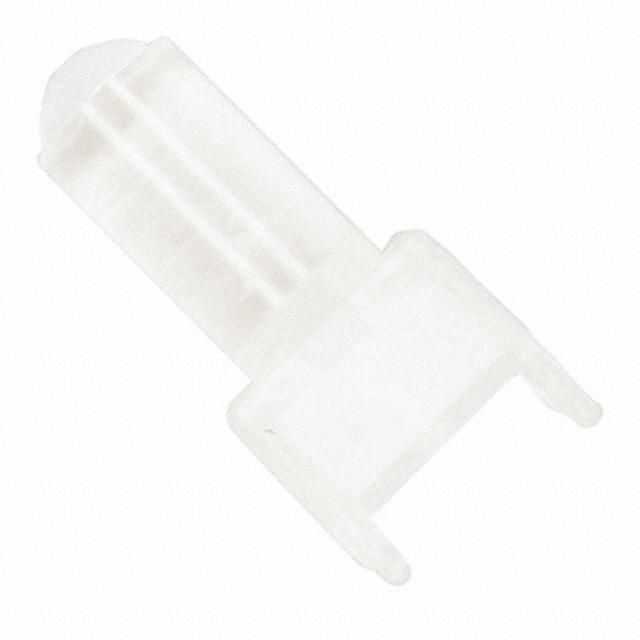

The VLP-350-R is a 3mm round domed polycarbonate light pipe with a length of 8.9mm and a clear housing color. It is made of PC material and has a round, domed lens style. The light pipe is available in a package quantity of 100 and is packaged in bulk. It is lead free and has an unknown Reach SVHC compliance status.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bivar VLP-350-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bivar VLP-350-R technical specifications.
| Body Length | 8.9mm |
| Package/Case | SMD/SMT |
| Color | Clear |
| Diameter | 3mm |
| Height | 8.9mm |
| Housing Color | Clear |
| Lead Free | Lead Free |
| Length | 8.9mm |
| Lens Size | 3mm |
| Lens Style | Round, Domed |
| Material | PC, Polycarbonate |
| Mount | Panel, Press-Fit, Board, PCB |
| Number of Columns | 1 |
| Number of Rows | 1 |
| Number of Ways | 1 |
| Orientation | Vertical |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Series | VLP |
| Size | 0.35inch |
| Width | 4.7mm |
| RoHS | Compliant |
