Block
DCT24-0.5
BLOCK DCT24-0.5 Linear Power Supply, Non-Stabilised, Fixed, 1 Outputs, 230 V, 400 V, 12 W, 24 V
MountingDIN Rail
Quick Jump:
Technical Specifications
Block DCT24-0.5 technical specifications.
General
Current - Output 1
500mA
Depth
94mm
Efficiency
62%
Height
63mm
Length
71mm
Max Input Voltage (AC)
400V
Min Input Voltage (AC)
230V
Max Input Voltage
400V
Min Input Voltage
230V
Max Operating Temperature
40°C
Max Output Power
12W
Max Output Voltage
24V
Min Output Voltage
24V
Mount
DIN Rail
Number of Outputs
1
Output Current
500mA
Output Voltage
24V
Reach SVHC Compliant
No
Voltage - Output 1
24V
Weight
0.52kg
Width
63mm
Compliance
RoHS
Compliant
Datasheet
Block DCT24-0.5 Datasheet
Download the complete datasheet for Block DCT24-0.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

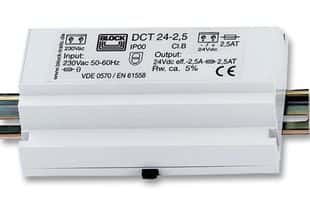

Product Images
