Wirewound rotary potentiometer featuring a 5kR resistance value and 5% tolerance. This linear taper potentiometer offers 10 turns and a 2W power dissipation rating, with a linearity of 0.25%. Designed for panel mounting, it operates within a temperature range of -40°C to 125°C and has a voltage rating of 500V DC. The component is RoHS compliant and has an IP40 rating.
Resistance5kR
MountingPanel
Quick Jump:
Technical Specifications
Bourns 3590S-2-502L technical specifications.
General
Depth
22.23mm
Diameter
22.23mm
Height
18.59mm
Lead Free
Lead Free
Length
39.22mm
Linearity
0.25%
Max Operating Temperature
125°C
Max Power Dissipation
2W
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Panel
Number of Gangs
1
Number of Turns
10
Package Quantity
25
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
3590
Taper
Linear
Termination
Solder
Tolerance
5%
Type
Potentiometer
Voltage Rating (AC)
450V
DC Rated Voltage
500V
Weight
0.670205oz
Compliance
RoHS
Compliant
Datasheet
Bourns 3590S-2-502L Datasheet
Download the complete datasheet for Bourns 3590S-2-502L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

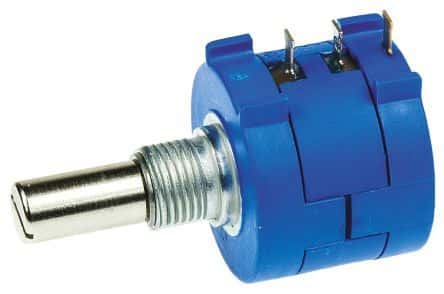

Product Images
