Surface mount modular connector with 6 positions and 1 row, featuring a straight, male orientation. Constructed with a copper alloy housing and contacts plated with gold for enhanced conductivity. Operates within a temperature range of -55°C to 125°C and has a maximum DC voltage rating of 30V. This component is UL94 V-0 rated for flammability and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 70ADJ-6-ML1 technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold
Depth
11mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
23.7mm
Material
Copper Alloy
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
30V
Mount
Surface Mount
Number of Batteries
6
Number of Contacts
6
Number of Ports
1
Number of Positions
6
Number of Rows
1
Orientation
Straight
Package Quantity
20
Packaging
Rail/Tube
Pitch
4mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
70AD
Termination
Solder
DC Rated Voltage
30V
Width
11.2mm
Compliance
RoHS
Compliant
Datasheet
Bourns 70ADJ-6-ML1 Datasheet
Download the complete datasheet for Bourns 70ADJ-6-ML1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

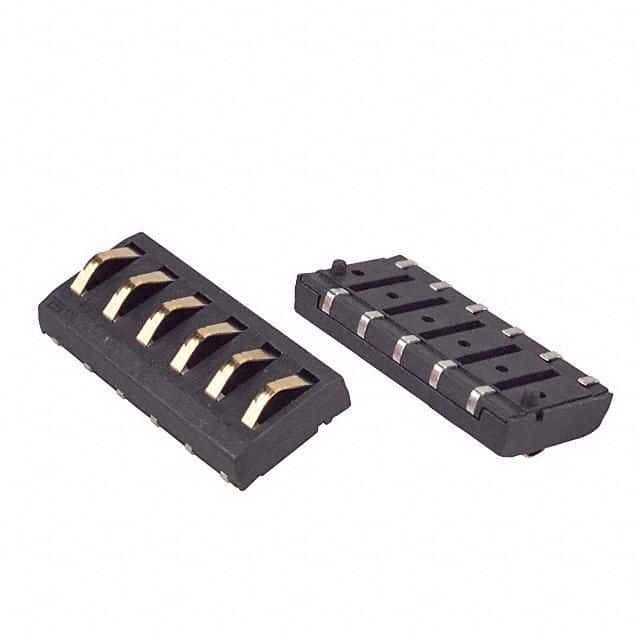

Product Images
