The CHF3523DNT500LW is a 5GHz RF power resistor from Bourns with a maximum power dissipation of 100W. It has a resistance of 50R with a tolerance of 5% and is available in a 3523 package with a height of 1mm and a width of 5.842mm. The resistor is suitable for surface mount technology (SMT) and is compliant with RoHS regulations. It has an operating temperature range of -55°C to 150°C.
Frequency4GHz
Package3523
Resistance50R
Quick Jump:
Technical Specifications
Bourns CHF3523DNT500LW technical specifications.
General
| Package/Case | 3523 |
| Contact Plating | Tin |
| Depth | 5.842mm |
| Frequency | 4GHz |
| Height | 1mm |
| Length | 8.89mm |
| Max Frequency | 5GHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100W |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 50R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | CHF - RF Power |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Width | 5.842mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CHF3523DNT500LW Datasheet
Download the complete datasheet for Bourns CHF3523DNT500LW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

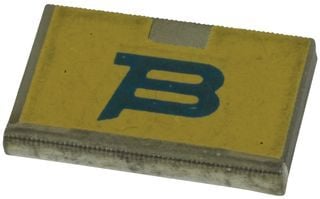

Product Images
