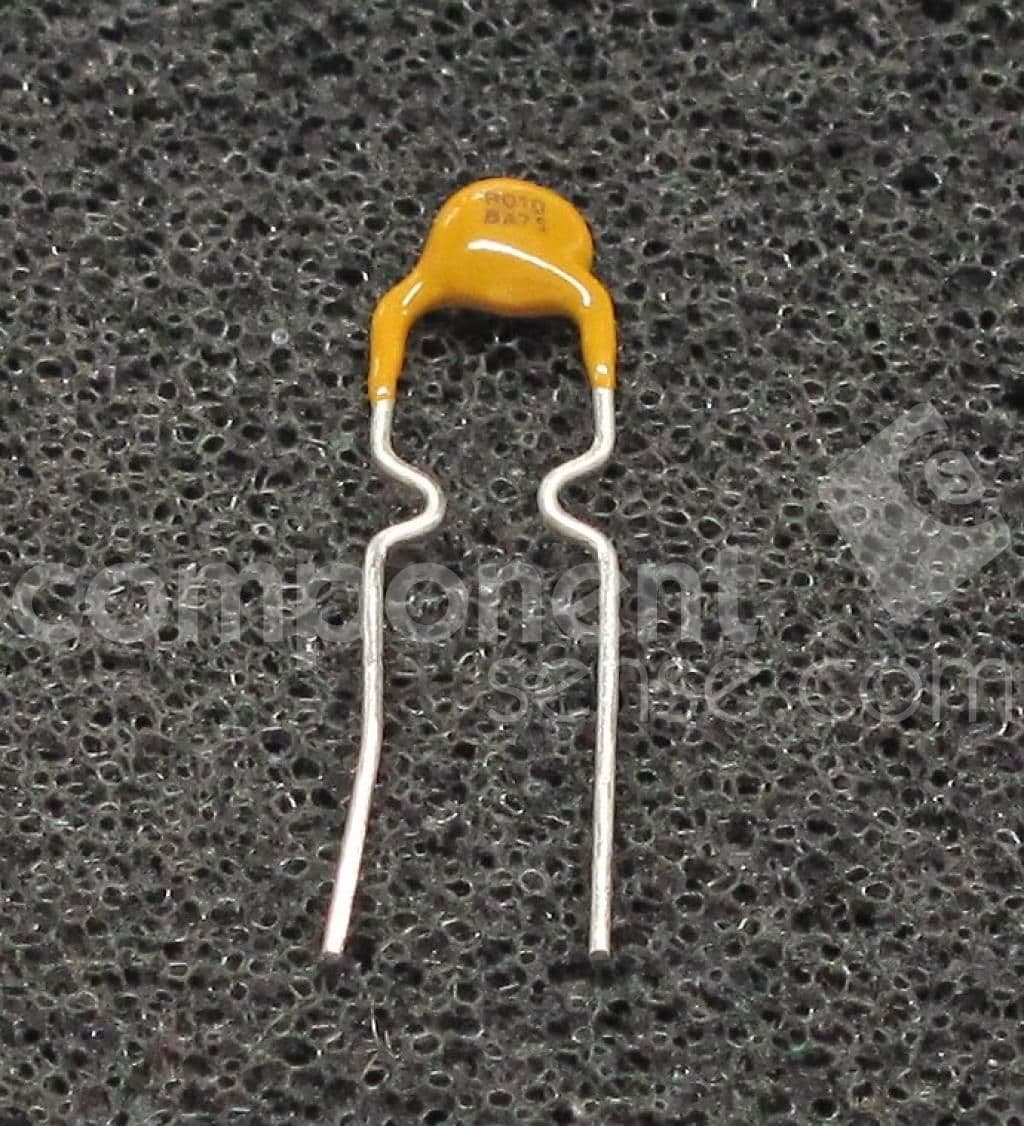

The MFR010 is a radial lead free fuse with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum current rating of 40A and a power dissipation of 380mW. The fuse is packaged in bulk and is compliant with UL, CSA, and TUV approvals. It has a flammability rating of UL94 V-0 and a lead diameter of 0.51mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MFR010 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, TUV |
| Body Height | 12.7mm |
| Body Length | 7.4mm |
| Package/Case | Radial |
| Diameter | 7.4mm |
| Flammability Rating | UL94 V-0 |
| Height | 12.7mm |
| Hold Current | 100mA |
| Lead Diameter | 0.51mm |
| Lead Free | Lead Free |
| Lead Length | 7.6mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Supply Voltage | 60V |
| Packaging | Bulk |
| Power Dissipation | 380mW |
| Reach SVHC Compliant | No |
| Time to Trip | 4s |
| Trip Current | 200mA |
| Voltage Rating | 60V |
| DC Rated Voltage | 60V |
| Wire/Cable Diameter | 0.51mm |
| RoHS | Compliant |
