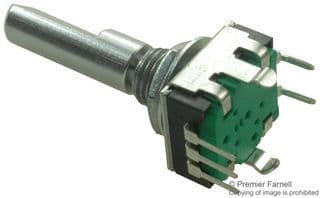

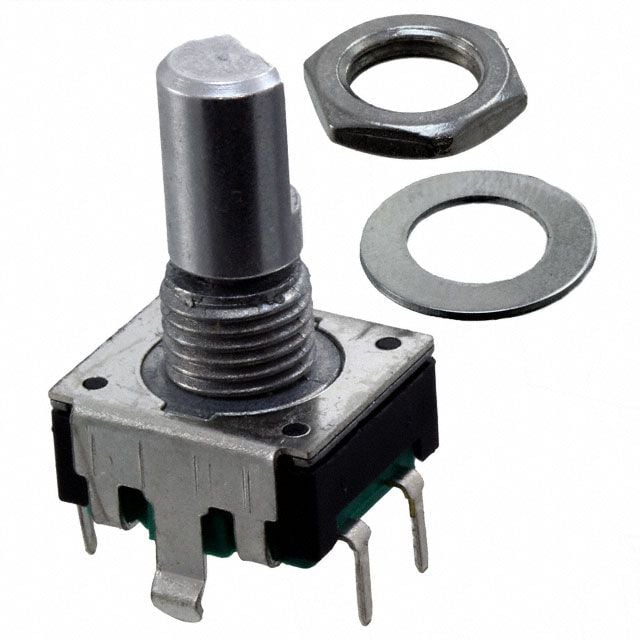

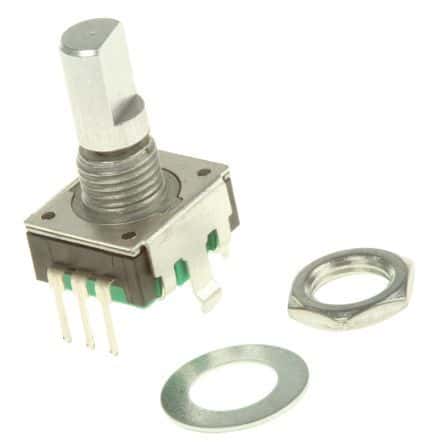

Incremental mechanical encoder with 24 pulses per revolution (PPR) and 2 output channels providing quadrature digital square wave signals. Features a built-in switch, detent mechanism, and 18 discrete positions. Rated for 5V DC and 10mA, operating between -30°C and 70°C. Mounts via through-hole or panel, with PC pin termination for PCB integration. Vertical orientation and a compact design with dimensions of 21.5mm (height) x 12.5mm (width) x 21.5mm (length).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PEC11R-4215F-S0024 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns PEC11R-4215F-S0024 technical specifications.
| Built in Switch | Yes |
| Current Rating | 10mA |
| Detent | Yes |
| Encoder Type | Mechanical |
| Height | 21.5mm |
| Length | 21.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Panel, PCB |
| Number of Channels | 2 |
| Number of Positions | 18 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 75 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PEC11R |
| Termination | PC Pins |
| Type | Mechanical |
| DC Rated Voltage | 5V |
| Width | 12.5mm |
| RoHS | Compliant |
