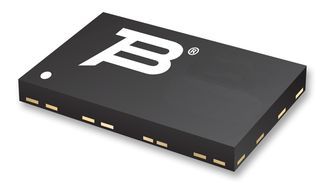

The TBU-PK085-100-WH is a bidirectional transient voltage suppression (TVS) diode from Bourns. It features a clamping voltage of 850V and a current rating of 100mA. The device is available in a DFN package and is designed for surface mount applications. The TBU-PK085-100-WH operates over a temperature range of -55°C to 125°C and is not RoHS compliant. It has a response time of 1us and a peak pulse current of 200mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns TBU-PK085-100-WH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns TBU-PK085-100-WH technical specifications.
| Package/Case | DFN |
| Clamping Voltage | 850V |
| Current Rating | 100mA |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Height | 0.033inch |
| Length | 0.255inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Operating Supply Voltage | 850V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 200mA |
| Reach SVHC Compliant | No |
| Response Time | 1us |
| Reverse Standoff Voltage | 20V |
| RoHS Compliant | No |
| Series | TBU-PK |
| Termination | Solder |
| Voltage Rating | 425V |
| DC Rated Voltage | 425V |
| Width | 0.157inch |
| Working Voltage | 425V |
| RoHS | Not Compliant |
