General purpose transistor output optocoupler featuring 2.5kV isolation voltage and 1-element configuration. Surface mountable in a DIP-6 package, it offers a 30V collector-emitter breakdown voltage and 100mA max collector current. Operates within a -55°C to 100°C temperature range, with a 10mA input current and 80mA max input current. Approvals include UL, CSA, and VDE.
PackageSMD/SMT
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Broadcom 4N25-300E technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 500mV |
| Contact Plating | Tin, Matte |
| Fall Time | 3us |
| Forward Current | 80mA |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 80mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current | 100mA |
| Output Current per Channel | 100mA |
| Package Quantity | 65 |
| Packaging | Rail/Tube |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom 4N25-300E Datasheet
Download the complete datasheet for Broadcom 4N25-300E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

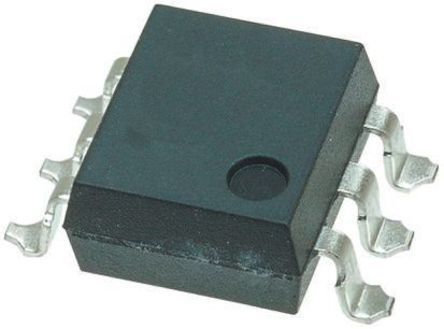

Product Images
