PackageSMD/SMT
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Broadcom 5962-9800201KXA technical specifications.
General
Package/Case
SMD/SMT
Collector-emitter Voltage-Max
110mV
Current Transfer Ratio
1500%
Forward Current
10mA
Input Type
DC
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
40mA
Max Output Voltage
20V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Output Current per Channel
40mA
Package Quantity
1
Packaging
Rail/Tube
Power Dissipation
200mW
Propagation Delay
100us
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom 5962-9800201KXA Datasheet
Download the complete datasheet for Broadcom 5962-9800201KXA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

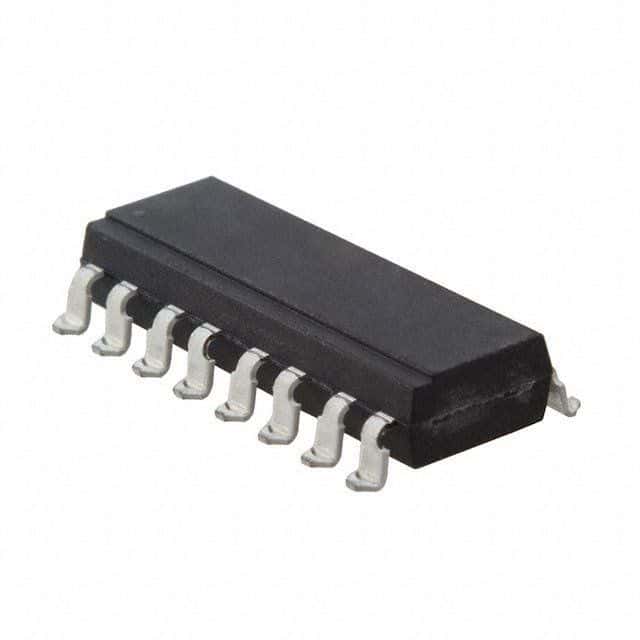

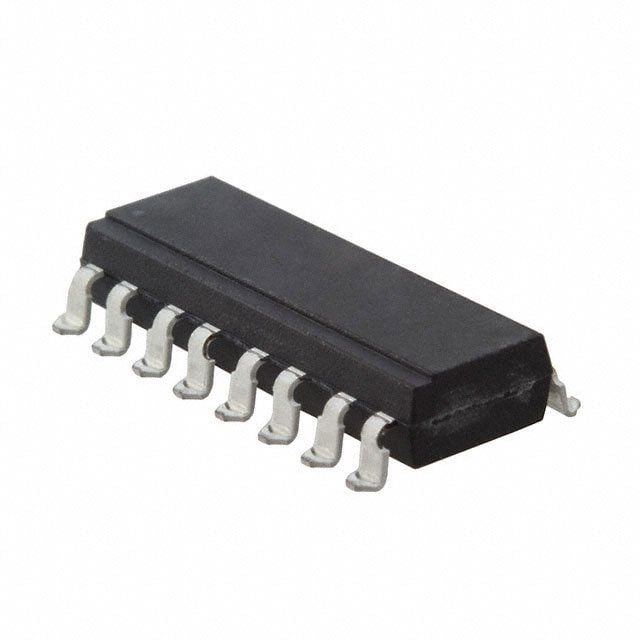

Product Images
